External Thermal Insulation Composite System

CEMIXTHERM BASIC

External Thermal Insulation Composite System

The system is designed for buildings with high requirements for facade quality, strength, and durability. It is especially effective for multi-storey buildings and structures with brick or block walls, providing reliable insulation, crack protection, and long-term structural stability.

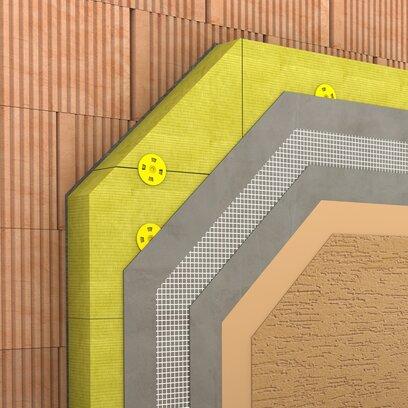

  • CEMIXTHERM BASIC is a facade insulation system that provides reliability, durability, and a modern appearance.
  • Cemix 2002 Plaster Scratch Coat: creates a strong bond with the substrate and prepares the surface for subsequent layers.
  • Cemix 2030 Base Plaster: levels the surface, increases strength, and improves moisture resistance.
  • Cemix 2210 Adhesive Filler: securely fixes mineral wool and is used for reinforcement.
  • Reinforcing Mesh: embedded in the mortar to prevent cracking.
  • Cemix 2613 Primer: creates a solid base for the finishing layer and enhances adhesion.
  • Cemix 2723 Decorative Plaster or Cemix 2880 Facade Paint: gives the facade an aesthetic appearance and protects it from external influences.
  • Each layer of the system complements the next, creating unified protection.

Area of use

  • Family homes and apartment buildings with high quality requirements.
  • Administrative and representative buildings.
  • Tall and spacious buildings that are heavily exposed to weather conditions.
  • Buildings with creative surface finishes.
0

Suitable for substrate material

Brick solid fired
Brick solid fired

1
2002 PRE-SPRINKLER
Sack PE 25 kg
Apply the scratch coat around the perimeter of the wall in a single layer.

Layer thickness

- mm

Applied thickess

mm

Value exceeds range

Consumption

4.8 - kg/m²

Requirements

-

Units

-

2
2030 BASE PLASTER
Sack PE 25 kg
Level surface with 1 layer of plaster

Layer thickness

15 - 30 mm

Applied thickess

mm

Value exceeds range

Consumption

1.88 - kg/m²/mm

Requirements

-

Units

-

3
2210 ADHESIVE FILLER STANDARD
Sack PE 25 kg
Apply adhesive in 3 dots + frame

Consumption

4 - 6 kg/m²

Requirements

-

Units

-

4
Facade Armouring Mesh
50 m² Roll PE
Install Armouring Mesh 10cm overlapping

Consumption

1.1 m²/m²

Requirements

-

Units

-

5
2210 ADHESIVE FILLER STANDARD
Sack PE 25 kg
Embed the mesh and level the surface

Layer thickness

3 - 5 mm

Applied thickess

mm

Value exceeds range

Consumption

1.558 kg/m²/mm

Requirements

-

Units

-

6
2613 BASIC PRIMER
Container PE 10 l
Apply 2 coats of primer

Consumption

0.1 - 0.2 L/m²

Requirements

-

Units

-

7

Consumption

2.2 - 3 kg/m²

Requirements

-

Units

-
